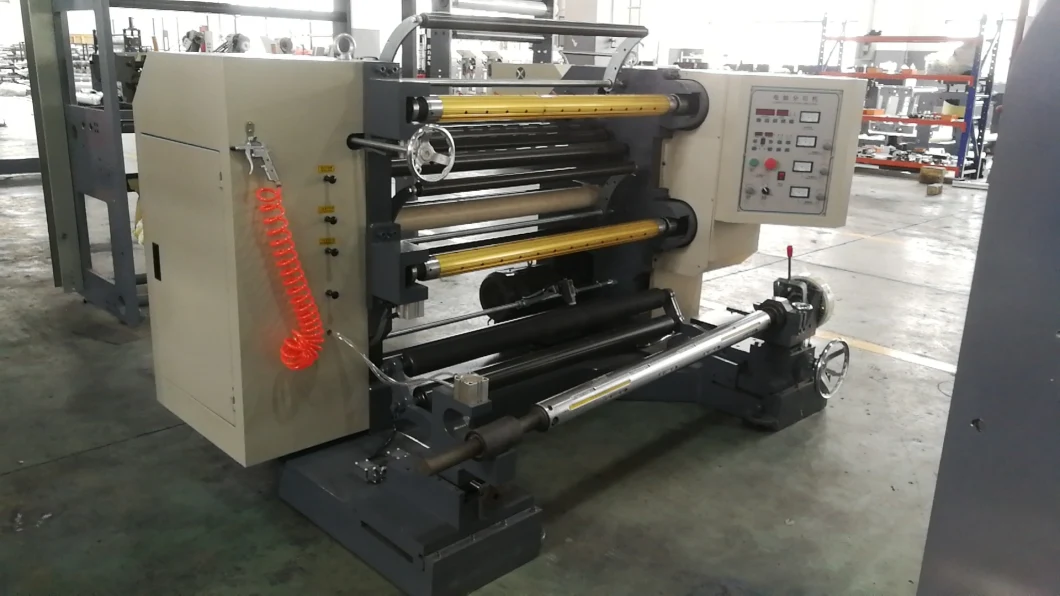

Vertical Automatic Slitting/Rewinding Machine
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production.
Performance and characteristics:
1. This machine is a kind of vertical slitting &rewinding machine.
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material
4. Equipped with magnetic powder brake for unwinding tension control
5. Magnetic clutch control for rewinding tension control
6. It can be equipped with rim charge conveying or rewinding device (which can be selected on order).
7. Automatic meter counting device.
8. Winding press roller can make the film more even
9. Double pneumatic winding
|Main Technical Variables|
|Roll Material Dimension||Max. Diameter Φ600mm, Max. Width 1100/1300mm|
|Inside Diameter of Paper Core||76mm|
|Separate Cutting DimenSion||Max. Diameter Φ450mm, Width 20-1000/1200mm|
|Separate Cutting Capacity||160m/min|
|Precision for Correct an Error||±0.5mm|
|Magnetic Power Brake||50N.m|
|Weight of Machine||1300kg|
